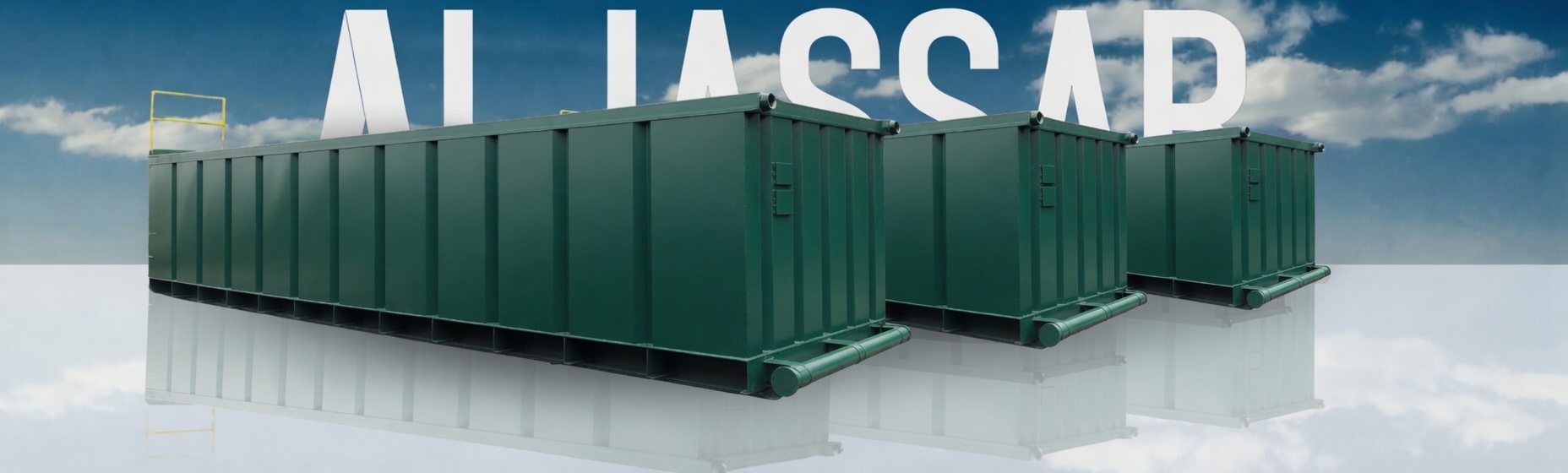

MUD Tanks

Mud Tanks Specs:

Specifications Value
Tank Material M. S Steel
Capacity 350 BBL/ 500 BBL/ or as per Demand
Tank Construction As per API and UL 142
Types Skid Mounted / Semi-Trailer Type
Lifting Mechanism (for Skid) Lifting Eyes as per DNV
Inside Coatings  Fiber Coating / Epoxy
Mixing mechanism Mud Agitators driven with ex-proof motors
Operating Terminal Available in both ex proof and non ex proof
Pipeline Customizable routes
Inlets and outlets Via Header / Customizable / Sizes as per demand
Valves Butterfly valves
Level Measuring Inside Callibration fonts / Dipstick (Both options available)
Valves Butterfly valves
Top walking safety Anti slip floor / Railings
Tank emptying mechanism Bottom sump

Al Jassar Engineering is a renowned brand in the oilfield industry, specializing in the manufacture of high-quality mud tanks. Notably, our tanks are distinguished by their exceptional safety, reliability, and durability. It makes them the preferred choice of numerous top-tier oilfield companies. Moreover, our expertise extends to designing and manufacturing comprehensive mud tank storage facilities with intricate interconnections.

Whether you require a single tank or a complete storage system, we have the capacity to meet your needs. Consequently, we invite you to contact us by clicking the button below to request a quote for our tanks.

Mud Tanks Overview

The mud tanks in an oilfield are containers used to store drilling mud, a specialized fluid used in drilling operations. Firstly, drilling mud, also known as drilling fluid, is a mixture of water, clay, and chemicals. It is used to lubricate the drill bit, remove cuttings from the wellbore, maintain wellbore stability, control pressure, and cool the drill bit. Additionally, these are typically made of steel and come in various sizes, ranging from a few hundred to several thousand barrels.

Moreover, these tanks are usually equipped with agitators to mix the mud, pumps to circulate the mud, valves to control flow, and sensors. These instruments monitor mud properties, such as density and viscosity. Furthermore, the these are part of the drilling fluid circulation system, which includes mud pumps, drill pipes, drill collars, bit, and wellbore.

Notably, the drilling mud is pumped from the mud tanks, down the drill pipes, and out the drill bit. It then returns to the surface through the annulus (space between the drill pipes and wellbore). Afterwards, back to the tanks for processing and reuse. Consequently, mud tanks play a crucial role in maintaining the stability and safety of the drilling operation, as well as ensuring the quality of the drilling mud.
